FIG. 08 / 12
Structural Wood Screws

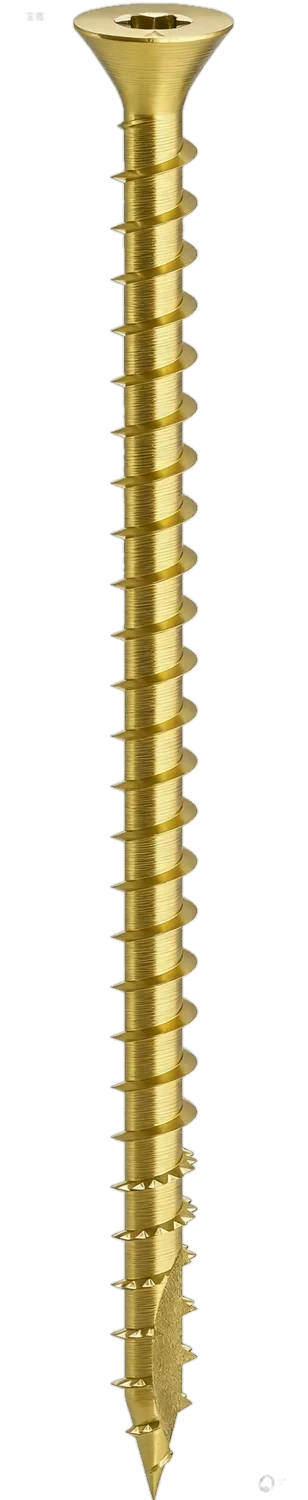

Wood Screws — TX Flat Head, Full Thread and Toothed Point
Diameter
Ø 8 mm – 12 mm
Length
60 mm – 1500 mm
Material
Stainless / Carbon Steel
Surface Finish
Zinc / Eco Coating
08 Product Core Features
Engineered details.
F.01
TX Flat Head with Under-Head Ribs
Flush, clean finish on visible surfaces.
F.02
Full Thread Design
Maximum withdrawal resistance over the entire length.
F.03
Tooth Thread & Sharp Point
Rapid engagement and prevents splitting.
F.04
High Strength
Excellent torsional strength for demanding joints.
Wood Types
- Soft wood (pine, spruce)
- Hard wood (oak, beech)
- Engineered wood (CLT, Glulam)
Application
- Cross-connections between timber beams
- Reinforcement of beam-to-column joints
- Structural nodes
Certification
- CE EN14592
- ETA Compatible
- ISO Standard
08.D Technical Drawing
Geometry & dimensions.

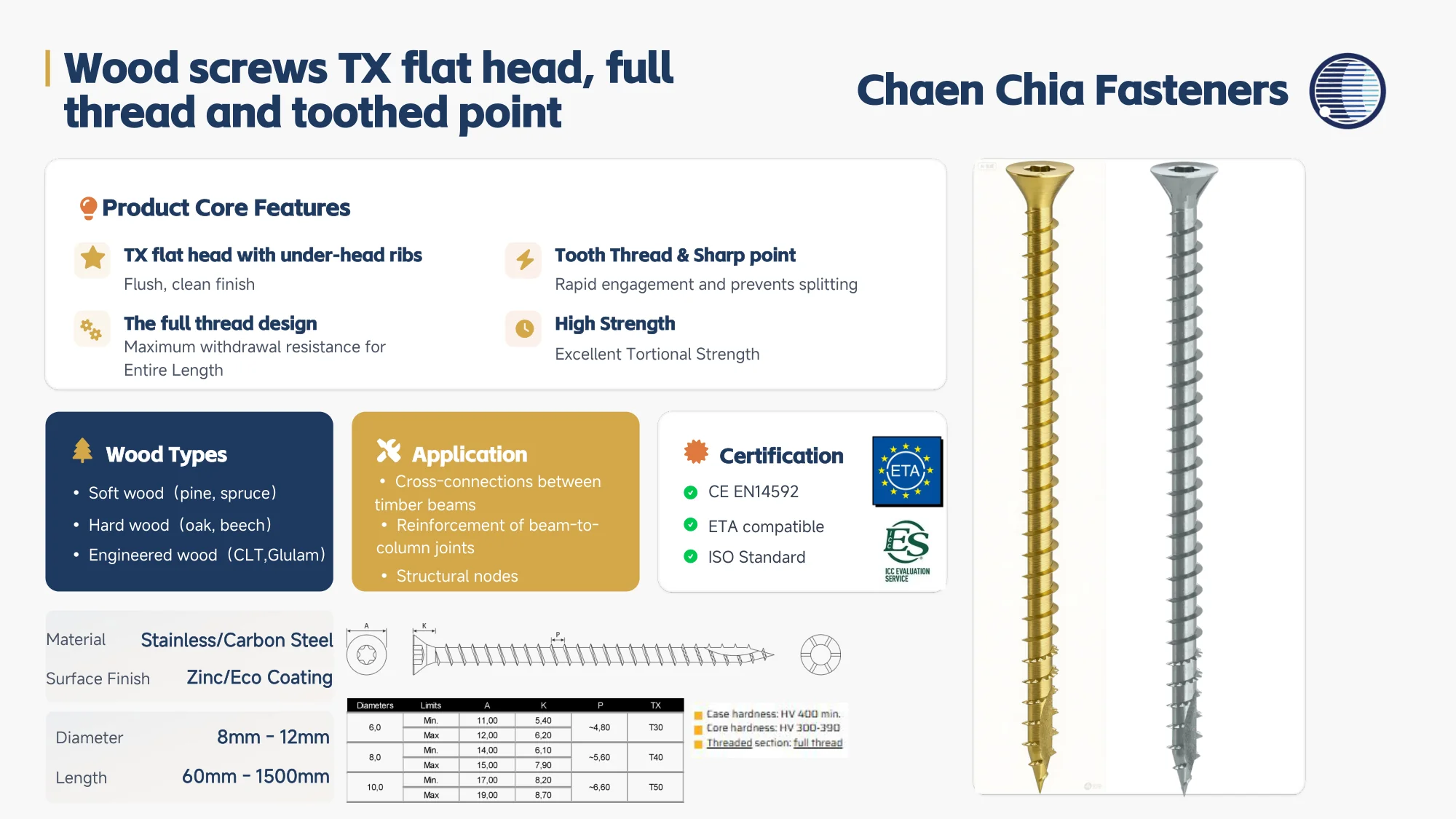

08.S Catalog Sheet
Open full size →
Full specification sheet.
