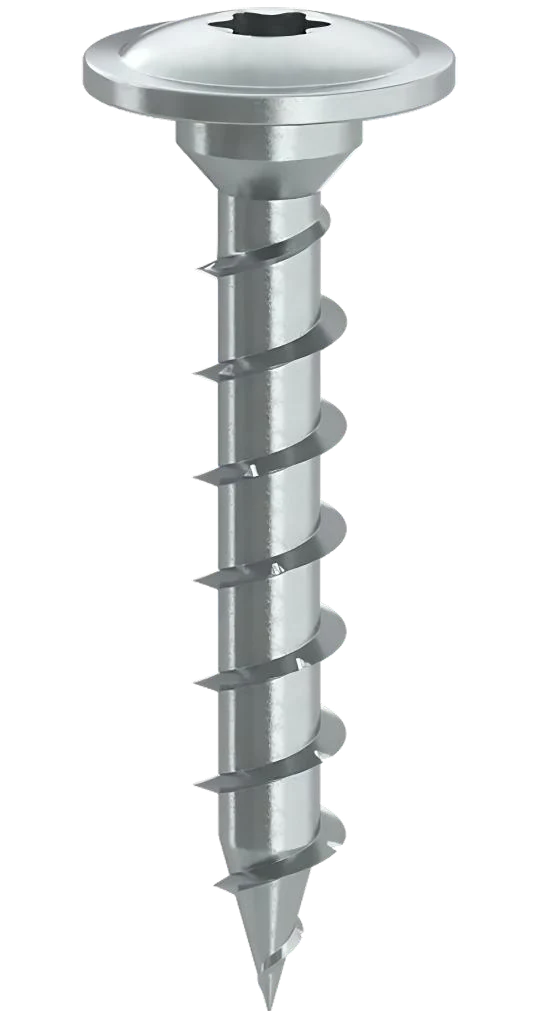

FIG. 09 / 12 Wood Screws — TX Wafer Head with Reinforced Neck and Full Thread — variant 1Wood Screws — TX Wafer Head with Reinforced Neck and Full Thread — variant 2
Structural Wood Screws

Wood Screws — TX Wafer Head with Reinforced Neck and Full Thread

Diameter
Ø 8.0 mm
Length
30 mm – 60 mm
Material
Stainless / Carbon Steel
Surface Finish
Zinc / Eco Coating
Request a quote →
09 Product Core Features

Engineered details.

F.01

Large Wafer Head

Designed for superior surface pressure distribution.

F.02

Reinforced Neck

Handles high structural loads at the head-shank transition.

F.03

Full-Thread Design

Ensures maximum grip and withdrawal resistance.

F.04

High Strength

Excellent torsional strength for demanding joints.

Wood Types

  • Softwoods (pine, spruce)
  • Medium-density timbers
  • CLT and Glulams

Application

  • Beam-column joint reinforcement
  • Fixing large panels
  • Heavy timber assembly

Certification

  • CE EN14592
  • ETA Compatible
  • ISO Standard
09.D Technical Drawing

Geometry & dimensions.

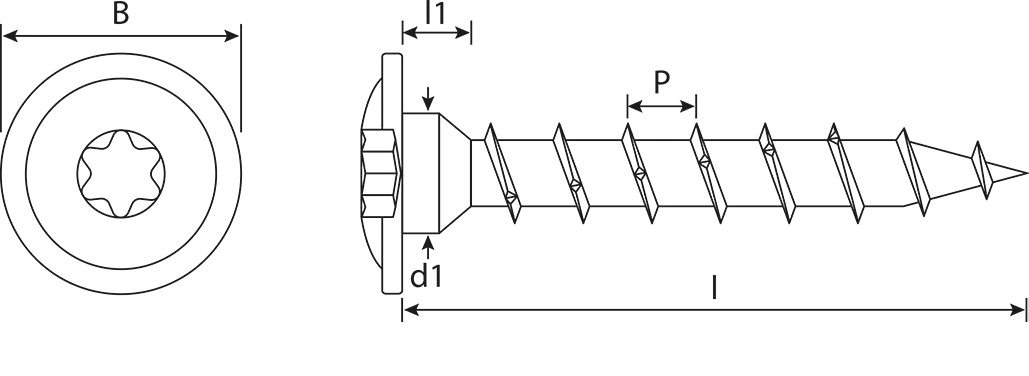

Technical drawing — Wood Screws — TX Wafer Head with Reinforced Neck and Full Thread
09.S Catalog Sheet

Full specification sheet.

Open full size →

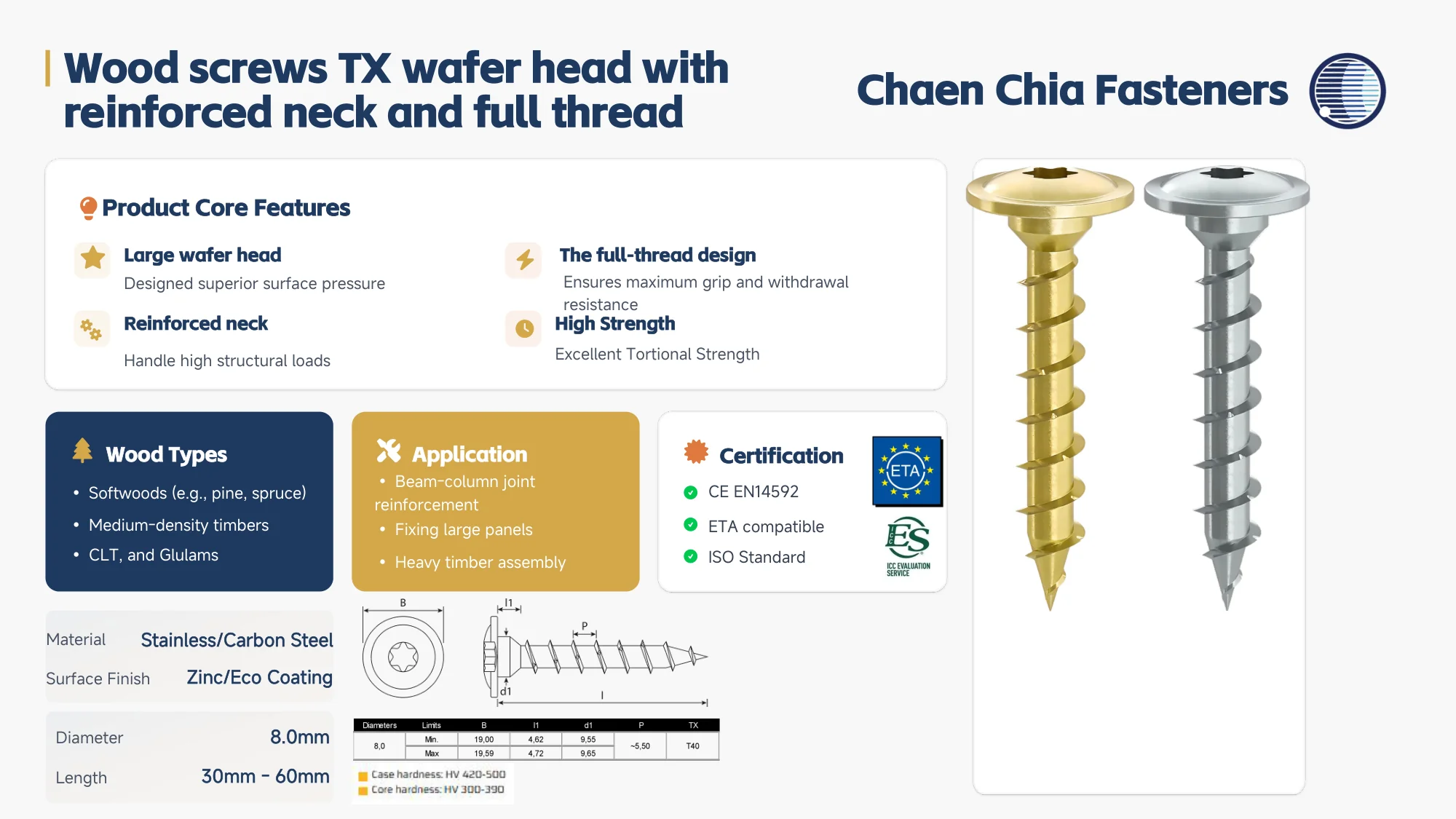

Catalog specification sheet — Wood Screws — TX Wafer Head with Reinforced Neck and Full Thread
