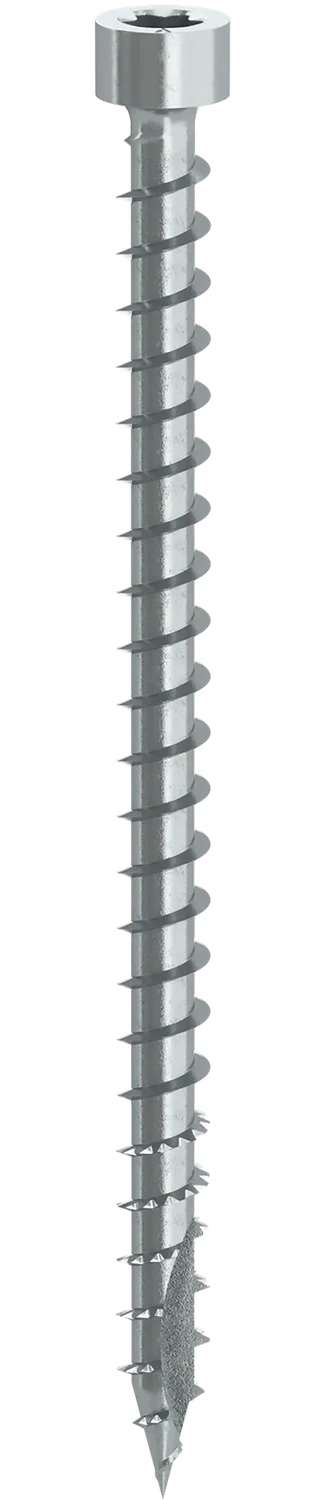

FIG. 07 / 12 Wood Screws — TX Cylinder Head, Full Thread and Toothed Point — variant 1Wood Screws — TX Cylinder Head, Full Thread and Toothed Point — variant 2
Structural Wood Screws

Wood Screws — TX Cylinder Head, Full Thread and Toothed Point

Diameter
Ø 8 mm – 12 mm
Length
60 mm – 1500 mm
Material
Stainless / Carbon Steel
Surface Finish
Zinc / Eco Coating
Request a quote →
07 Product Core Features

Engineered details.

F.01

Torx Cylinder Head

Discreet, countersunk finish in structural members.

F.02

Full Thread Design

Maximum withdrawal resistance over the entire length.

F.03

Tooth Thread & Sharp Point

Rapid engagement and prevents splitting.

F.04

High Strength

Excellent torsional strength for demanding joints.

Wood Types

  • Soft wood (pine, spruce)
  • Hard wood (oak, beech)
  • Engineered wood (CLT, Glulam)

Application

  • Cross-connections between timber beams
  • Reinforcement of beam-to-column joints
  • Structural nodes

Certification

  • CE EN14592
  • ETA Compatible
  • ISO Standard
07.D Technical Drawing

Geometry & dimensions.

Technical drawing — Wood Screws — TX Cylinder Head, Full Thread and Toothed Point
07.S Catalog Sheet

Full specification sheet.

Open full size →

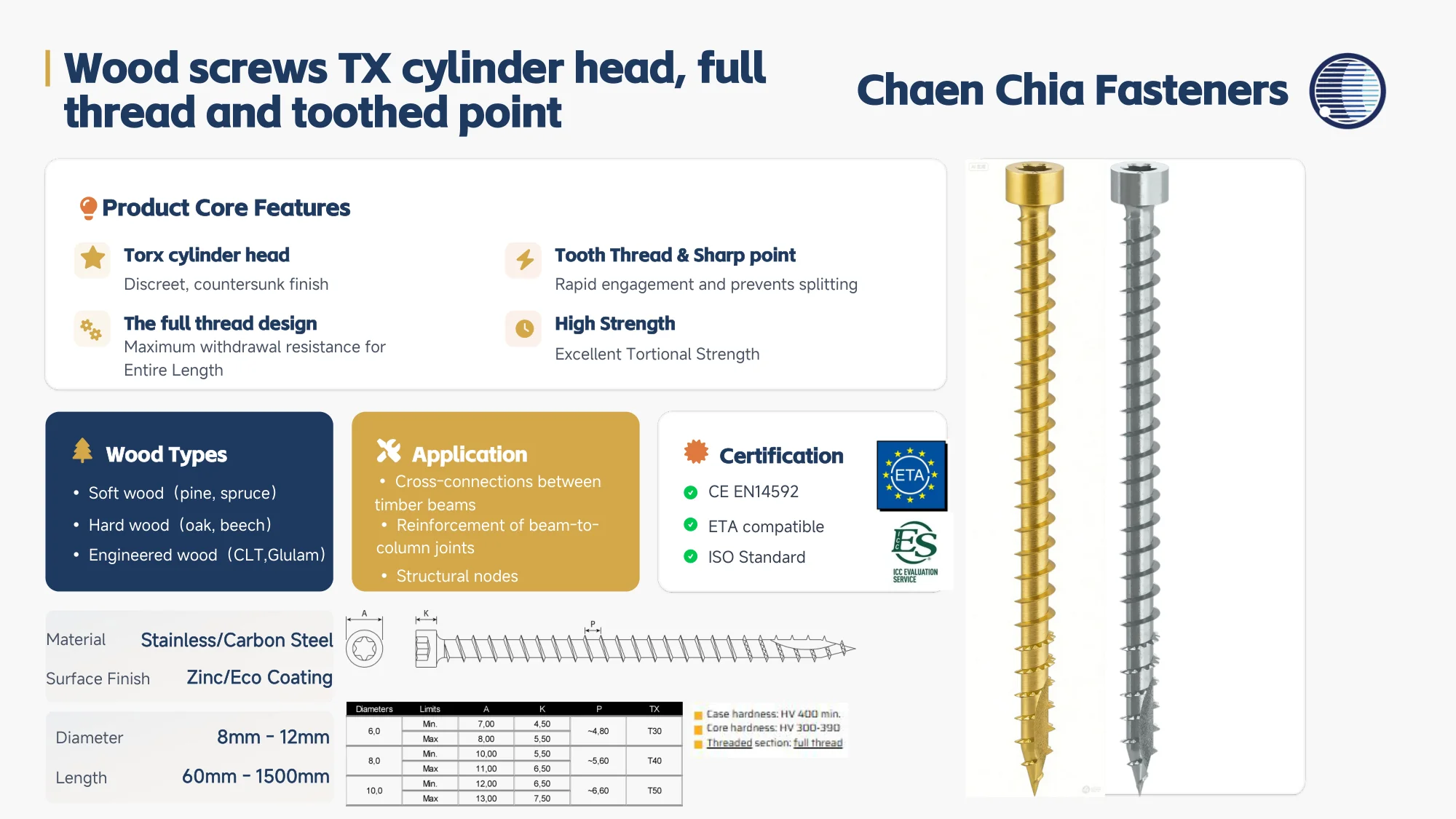

Catalog specification sheet — Wood Screws — TX Cylinder Head, Full Thread and Toothed Point
