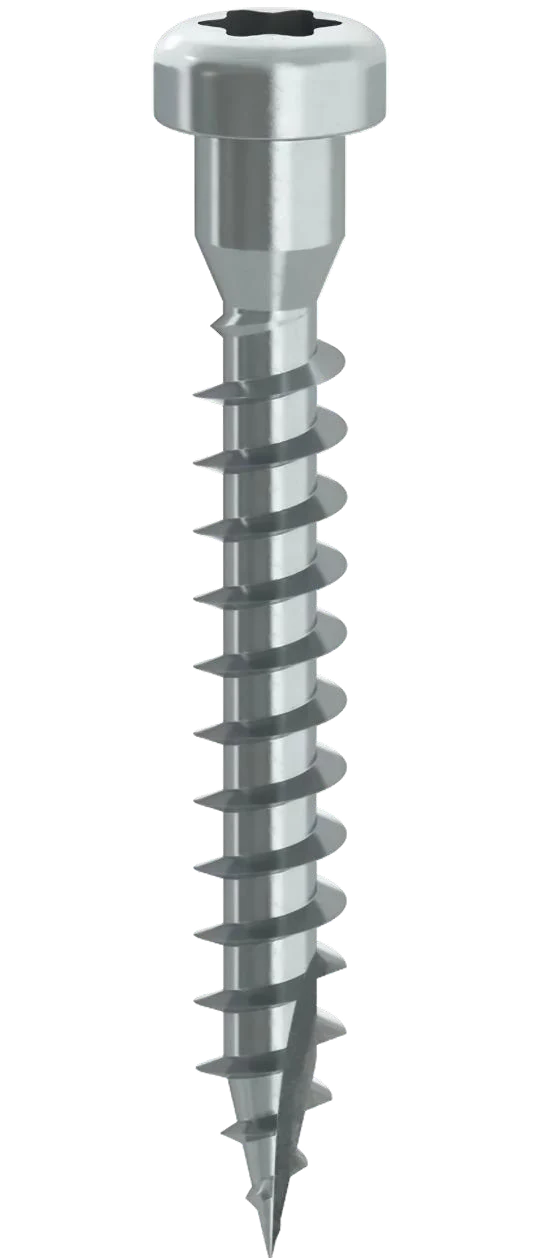

FIG. 06 / 12 Wood Angle-Bracket Screws — Pan Head with Reinforced Neck — variant 1Wood Angle-Bracket Screws — Pan Head with Reinforced Neck — variant 2
Connector Screws

Wood Angle-Bracket Screws — Pan Head with Reinforced Neck

Diameter
Ø 5.0 mm
Length
35 mm – 120 mm
Material
Stainless / Carbon Steel
Surface Finish
Zinc / Eco Coating
Request a quote →
06 Product Core Features

Engineered details.

F.01

Pan Head with Reinforced Neck

Designed to fit steel connectors precisely.

F.02

Partial Thread Design

Tight clamping effect on metal hardware.

F.03

High Performance

Locks the connectors securely to the joist.

F.04

Type 17 Point

Rapid penetration without splitting.

Wood Types

  • Softwoods (pine, spruce)
  • Medium-density timbers
  • CLT and Glulams

Application

  • Fixing metal connectors
  • Angle brackets & joist hangers
  • Beam supports in timber

Certification

  • CE EN14592
  • ETA Compatible
  • ISO Standard
06.D Technical Drawing

Geometry & dimensions.

Technical drawing — Wood Angle-Bracket Screws — Pan Head with Reinforced Neck
06.S Catalog Sheet

Full specification sheet.

Open full size →

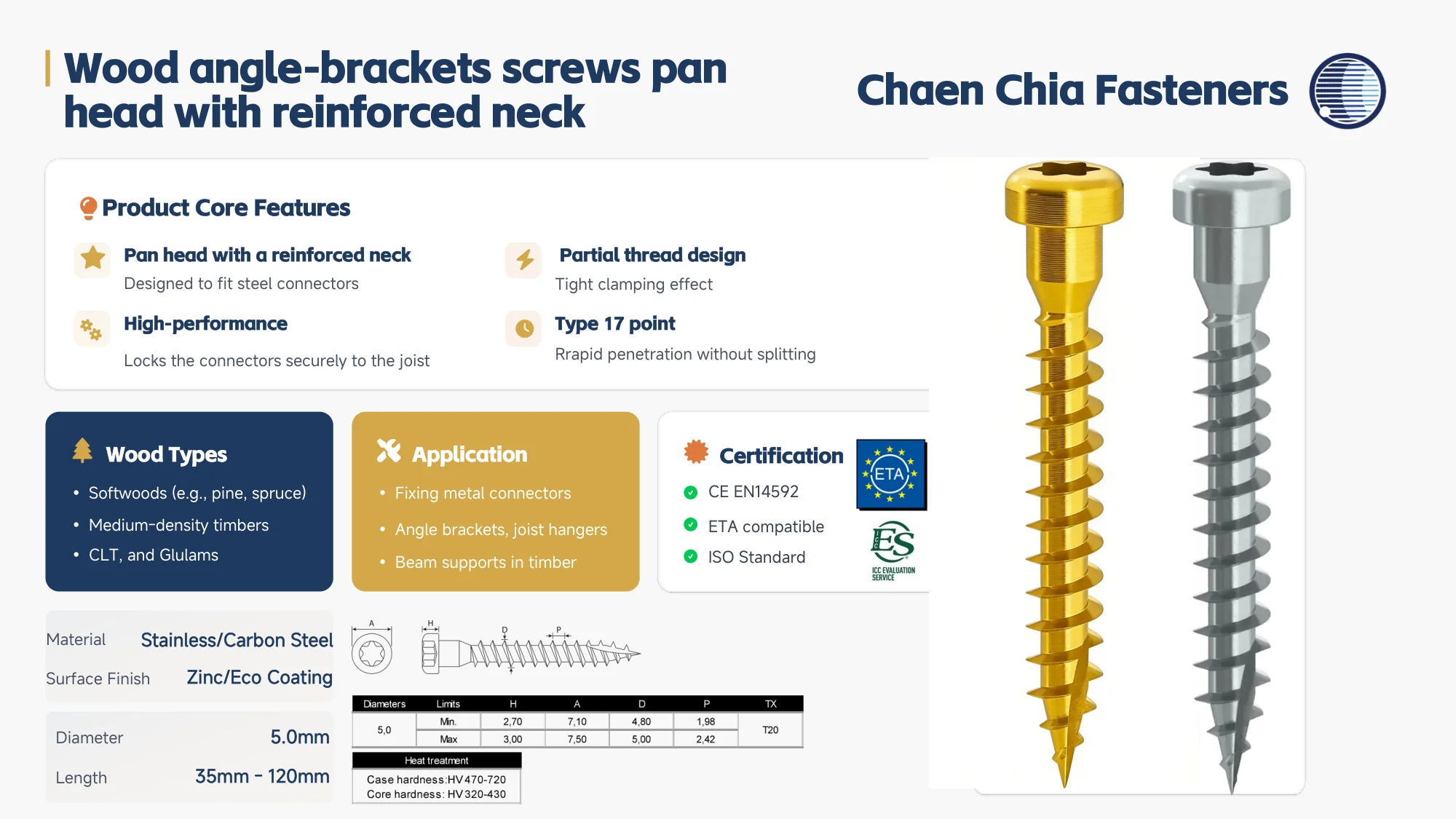

Catalog specification sheet — Wood Angle-Bracket Screws — Pan Head with Reinforced Neck
