FIG. 12 / 12
Insulation & Spacer Screws

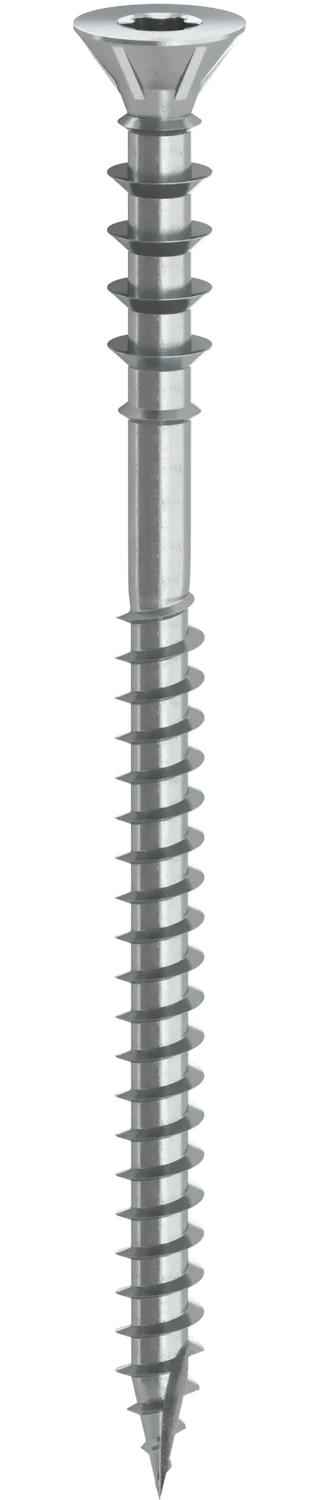

Wood Spacer Screws — TX Flat Head with Ribs and Two Different Threads
Diameter
Ø 6.0 mm
Length
60 mm – 300 mm
Material
Stainless / Carbon Steel
Surface Finish
Zinc / Eco Coating
12 Product Core Features
Engineered details.
F.01
TX Flat Head with Ribs
Perfect flush finish on battens and panels.
F.02
Seamless Connection
Distance adjustment without shims to correct uneven surfaces.
F.03
Two Different Thread Diameters
Secure mechanical locking between components.
F.04
Type 17 Toothed Point
Fast penetration and prevents splitting.
Wood Types
- Softwoods (pine, spruce)
- Medium-density timbers
- Solid wood panels
Application
- Leveling and spacing in timber structures
- Installing wooden battens or laths
- Uneven wall or roof structures
Certification
- CE EN14592
- ETA Compatible
- ISO Standard
12.D Technical Drawing
Geometry & dimensions.

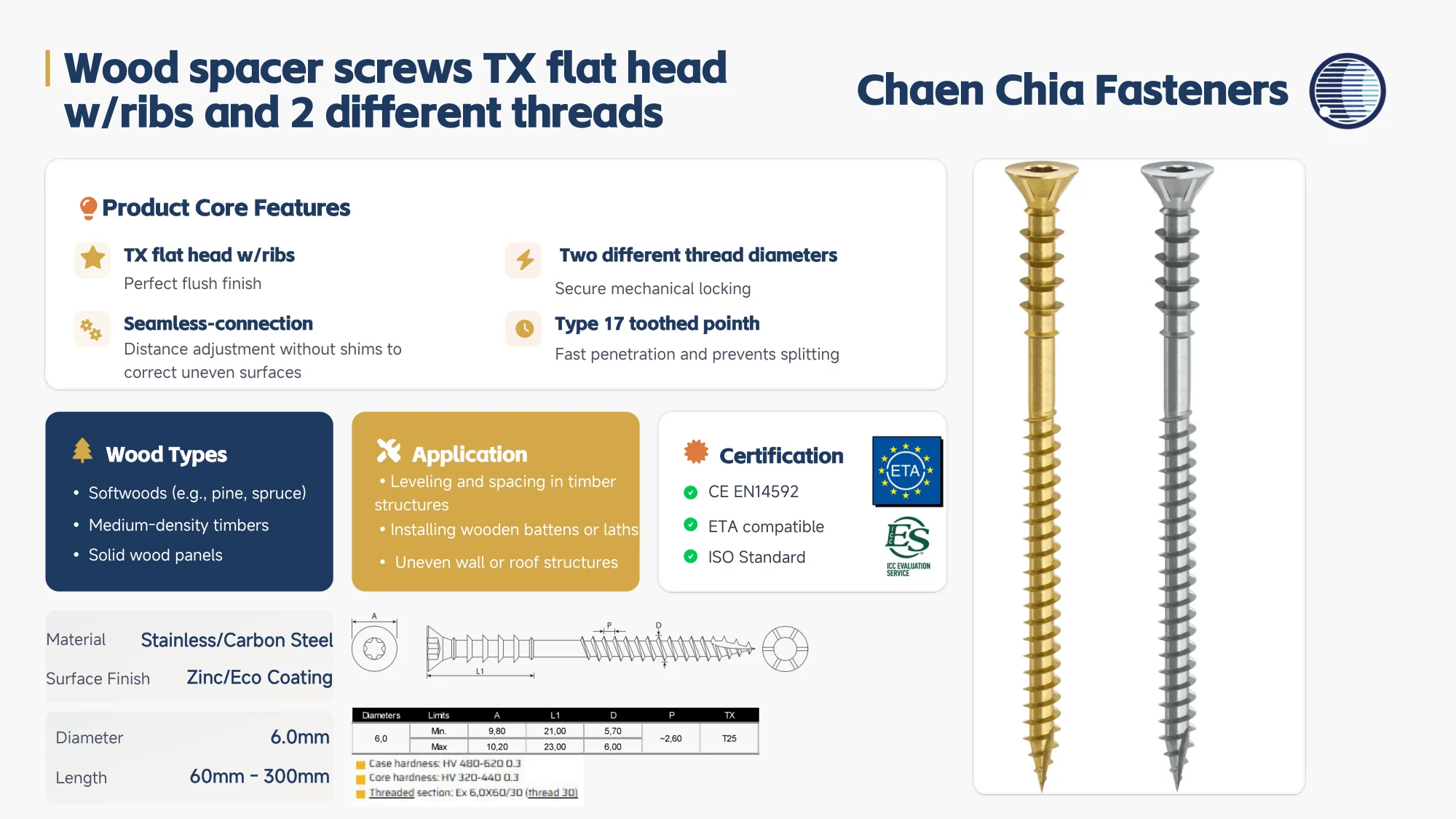

12.S Catalog Sheet
Open full size →
Full specification sheet.
