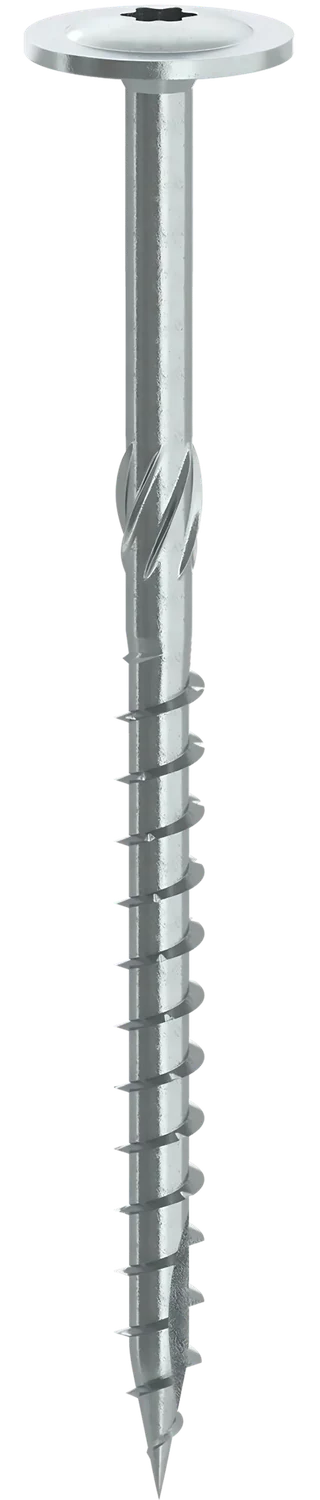

FIG. 01 / 12 Wafer Head Wood Screws with Serrations — variant 1Wafer Head Wood Screws with Serrations — variant 2
Structural Wood Screws

Wafer Head Wood Screws with Serrations

Diameter
Ø 6 mm – 10 mm
Length
60 mm – 600 mm
Material
Stainless / Carbon Steel
Surface Finish
Zinc / Eco Coating
Request a quote →
01 Product Core Features

Engineered details.

F.01

Torx Wafer Head

Superior pull-through resistance under heavy structural loads.

F.02

Middle Knurlings

Reduce driving friction and prevent wood splitting.

F.03

Asy Thread & Sharp Point

Fast entry without pre-drilling.

F.04

High Strength

Excellent torsional strength for demanding joints.

Wood Types

  • Soft wood (pine, spruce)
  • Hard wood (oak, beech)
  • Engineered wood (CLT, Glulam)

Application

  • Heavy timber frame structures
  • Roof truss installation
  • Main & secondary beam structures

Certification

  • CE EN14592
  • ETA Compatible
  • ISO Standard

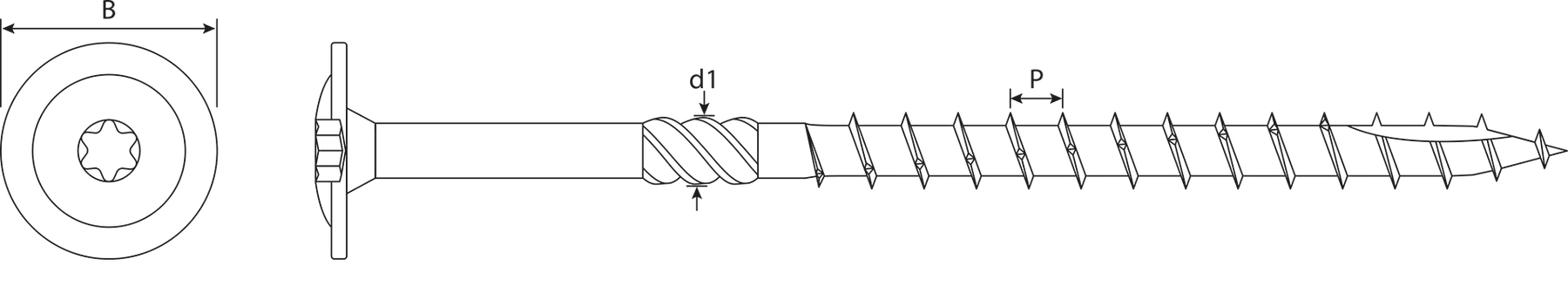

01.D Technical Drawing

Geometry & dimensions.

Technical drawing — Wafer Head Wood Screws with Serrations

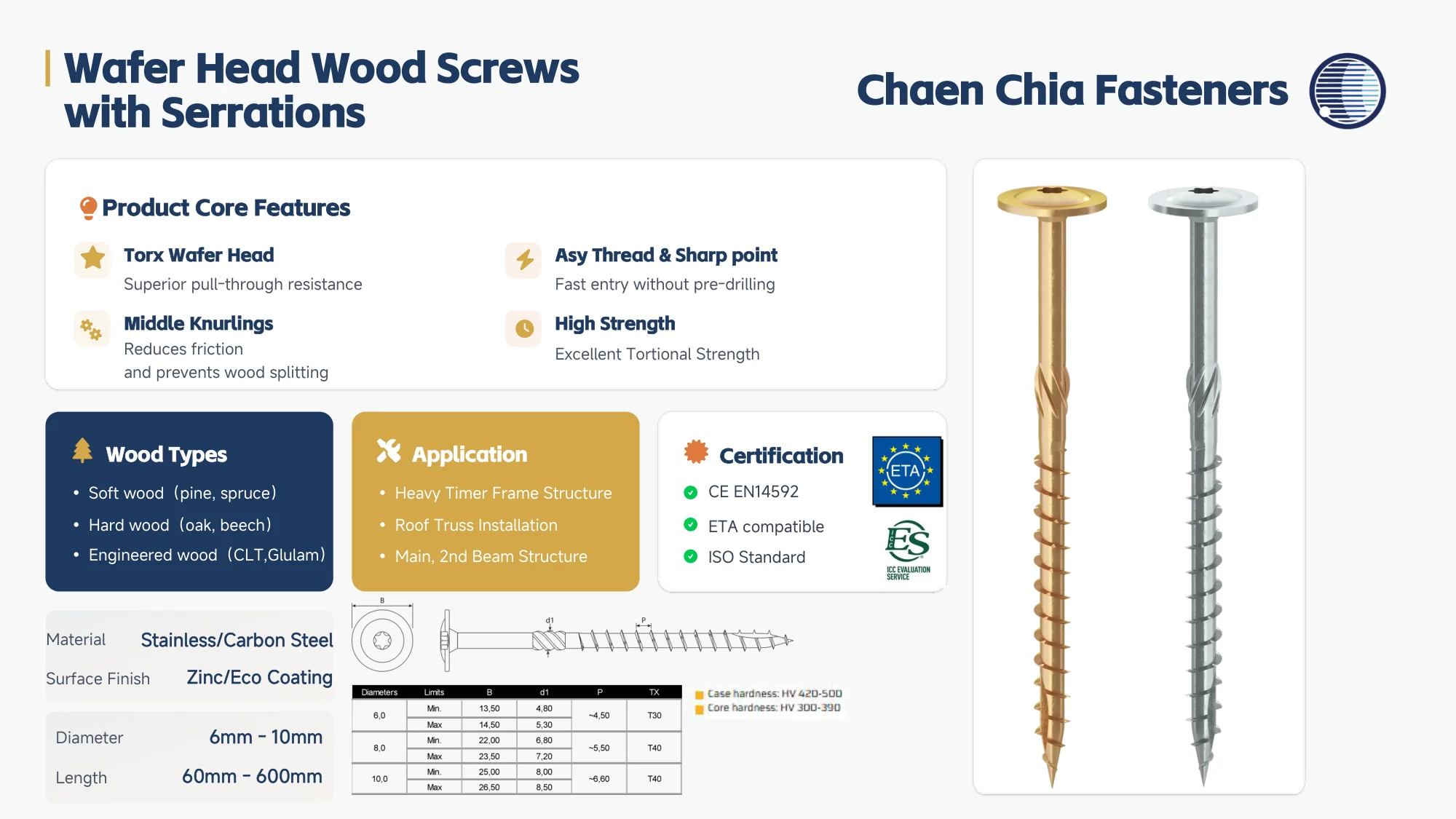

01.S Catalog Sheet

Full specification sheet.

Open full size →
Catalog specification sheet — Wafer Head Wood Screws with Serrations
