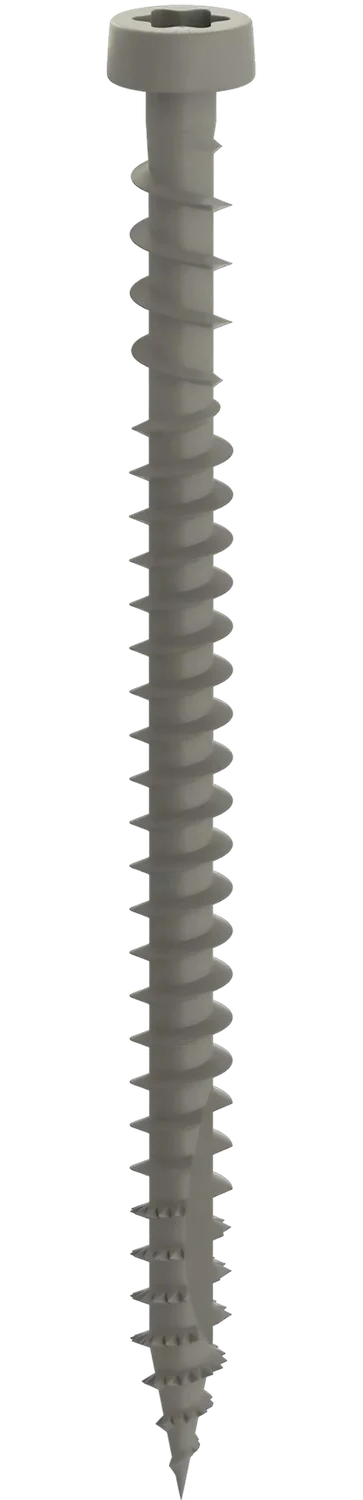

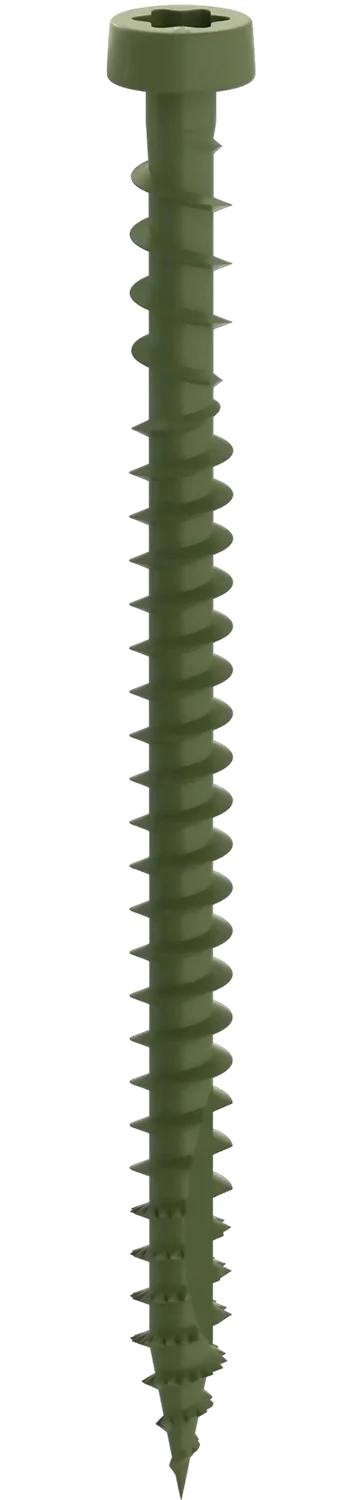

FIG. 03 / 12 Wood Terrace Screws — TX Trim Conical Head, Toothed Point Type 17 — variant 1Wood Terrace Screws — TX Trim Conical Head, Toothed Point Type 17 — variant 2Wood Terrace Screws — TX Trim Conical Head, Toothed Point Type 17 — variant 3
Terrace & Decking Screws

Wood Terrace Screws — TX Trim Conical Head, Toothed Point Type 17

Diameter
Ø 5 mm – 6 mm
Length
40 mm – 120 mm
Material
Stainless / Carbon Steel
Surface Finish
C4 / C5 Eco Coating
Request a quote →
03 Product Core Features

Engineered details.

F.01

TX Trim Conical Head

Ensures an aesthetic, near-invisible finish on deck boards.

F.02

Trilobular Shank Design

Significantly reduces driving friction.

F.03

Inverted Thread

Locks the board securely to the joist.

F.04

Type 17 Point

Rapid penetration without splitting.

Wood Types

  • Exotic hardwoods (Ipe, Cumaru, Teak)
  • Thermo-treated wood
  • Pressure-treated softwoods

Application

  • Outdoor terrace flooring
  • Pool decks & garden walkways
  • Timber cladding

Certification

  • CE EN14592
  • ETA Compatible
  • ISO Standard
03.D Technical Drawing

Geometry & dimensions.

Technical drawing — Wood Terrace Screws — TX Trim Conical Head, Toothed Point Type 17
03.S Catalog Sheet

Full specification sheet.

Open full size →

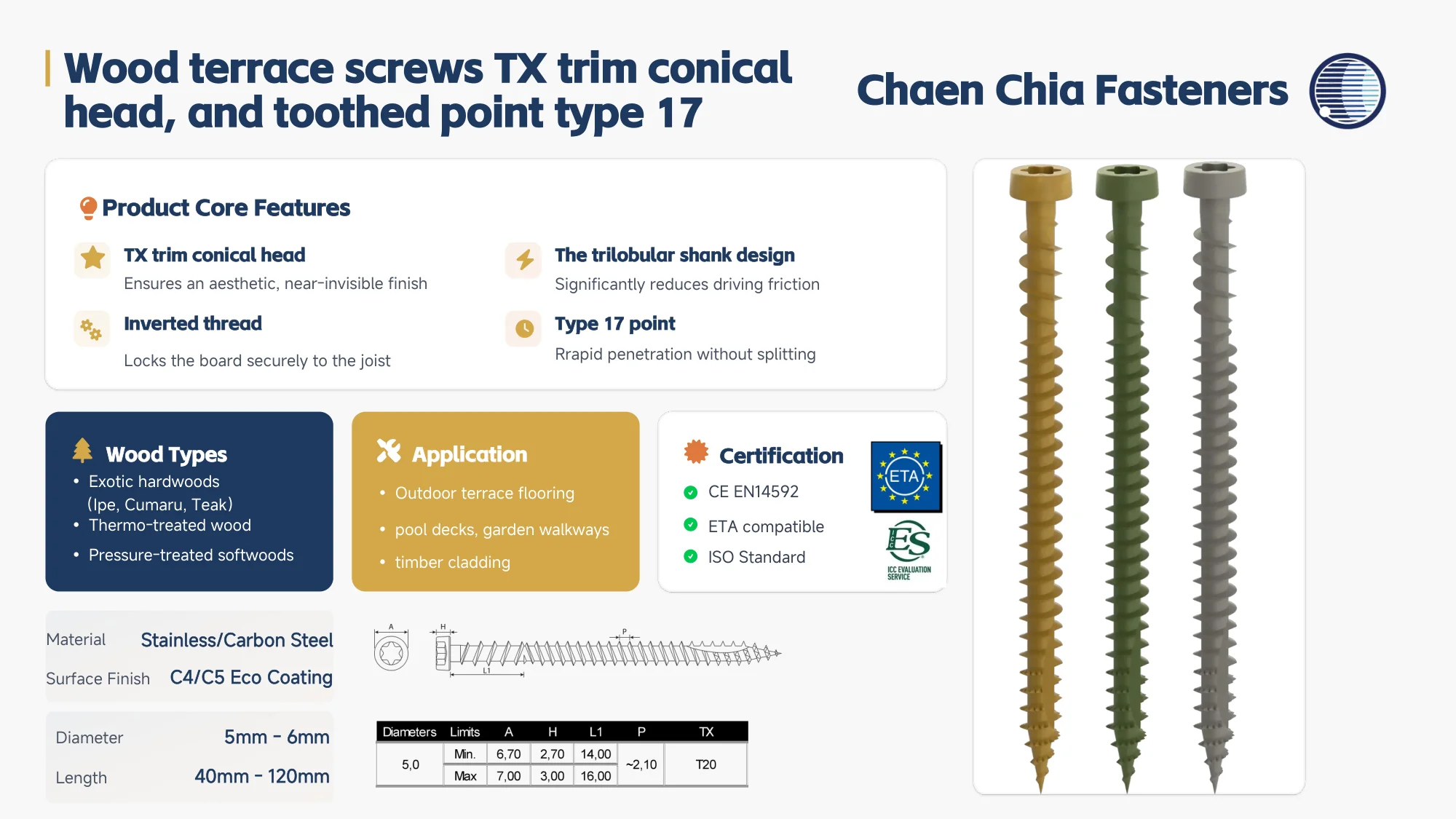

Catalog specification sheet — Wood Terrace Screws — TX Trim Conical Head, Toothed Point Type 17
